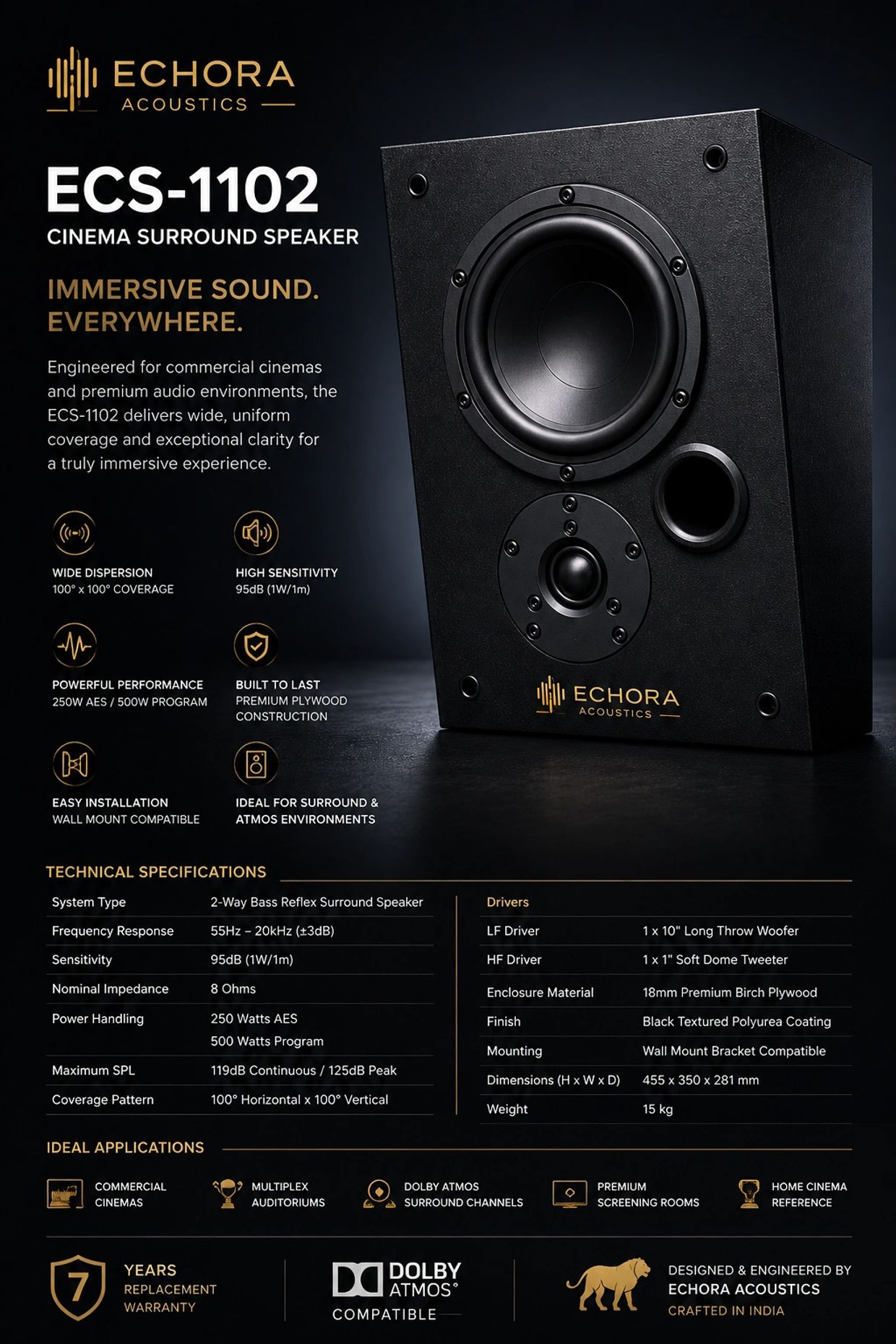

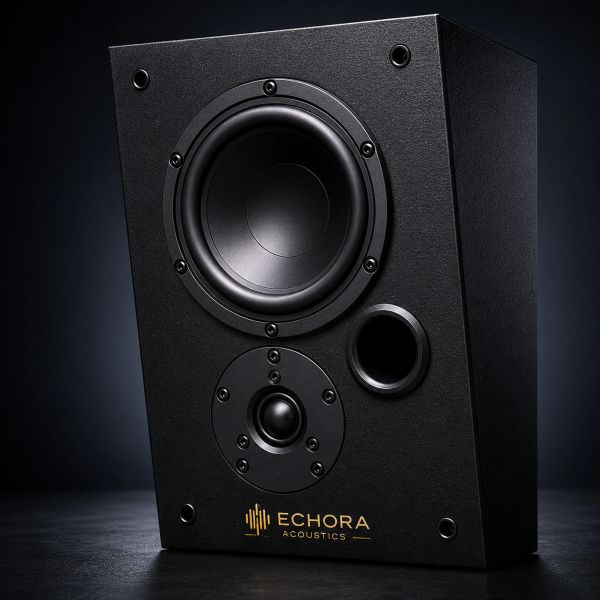

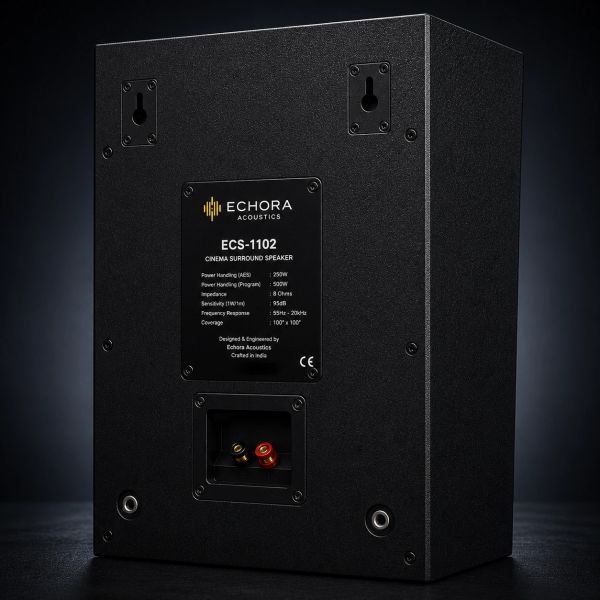

The ECS-1102 is a high-performance surround loudspeaker designed for commercial cinemas, multiplexes, premium screening rooms, and immersive audio environments. Engineered for wide coverage and exceptional dialogue clarity, it delivers consistent performance throughout the auditorium.

• Wide Dispersion Cinema Surround Speaker
• High Sensitivity Design
• Premium Soft Dome Tweeter
• Long Excursion Woofer
• Bass Reflex Cabinet
• Low Distortion Performance
• Wall Mount Compatible
• Commercial Grade Construction

System Type
2-Way Bass Reflex Surround Speaker

Frequency Response
55Hz – 20kHz (±3dB)

Sensitivity
95dB (1W/1m)

Nominal Impedance
8 Ohms

Power Handling
250 Watts AES
500 Watts Program

Maximum SPL
119dB Continuous
125dB Peak

Coverage Pattern
100° Horizontal × 100° Vertical

High Frequency Driver
1 × 1" Soft Dome Tweeter

Low Frequency Driver
1 × 10" Long Throw Woofer

Material
18mm Premium Birch Plywood

Finish
Black Textured Polyurea Coating

Mounting
Wall Mount Bracket Compatible

Height
455 mm

Width
350 mm

Depth
281 mm

15 kg

• Commercial Cinemas
• Multiplex Auditoriums
• Dolby Atmos Surround Channels
• Premium Screening Rooms
• Home Cinema Reference Installations

ECHORA ACOUSTICS

Designed & Developed by Echora Acoustics
Crafted in India

7 Years Replacement Warranty

Recommended Catalogue Model Name:
ECS-1102 Cinema Surround Speaker

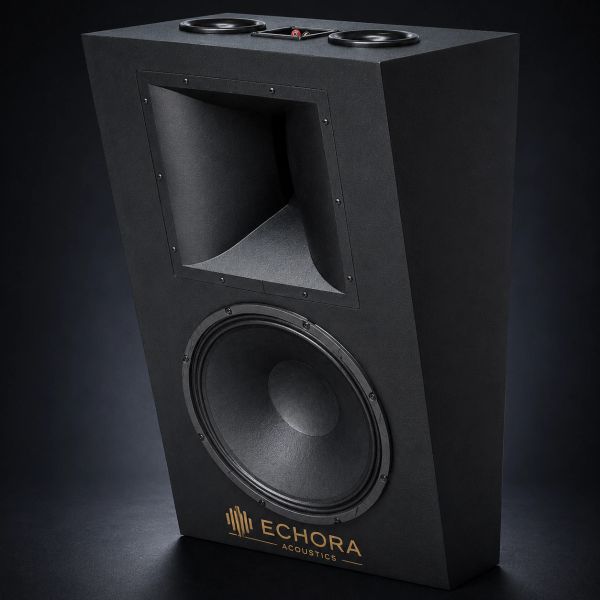

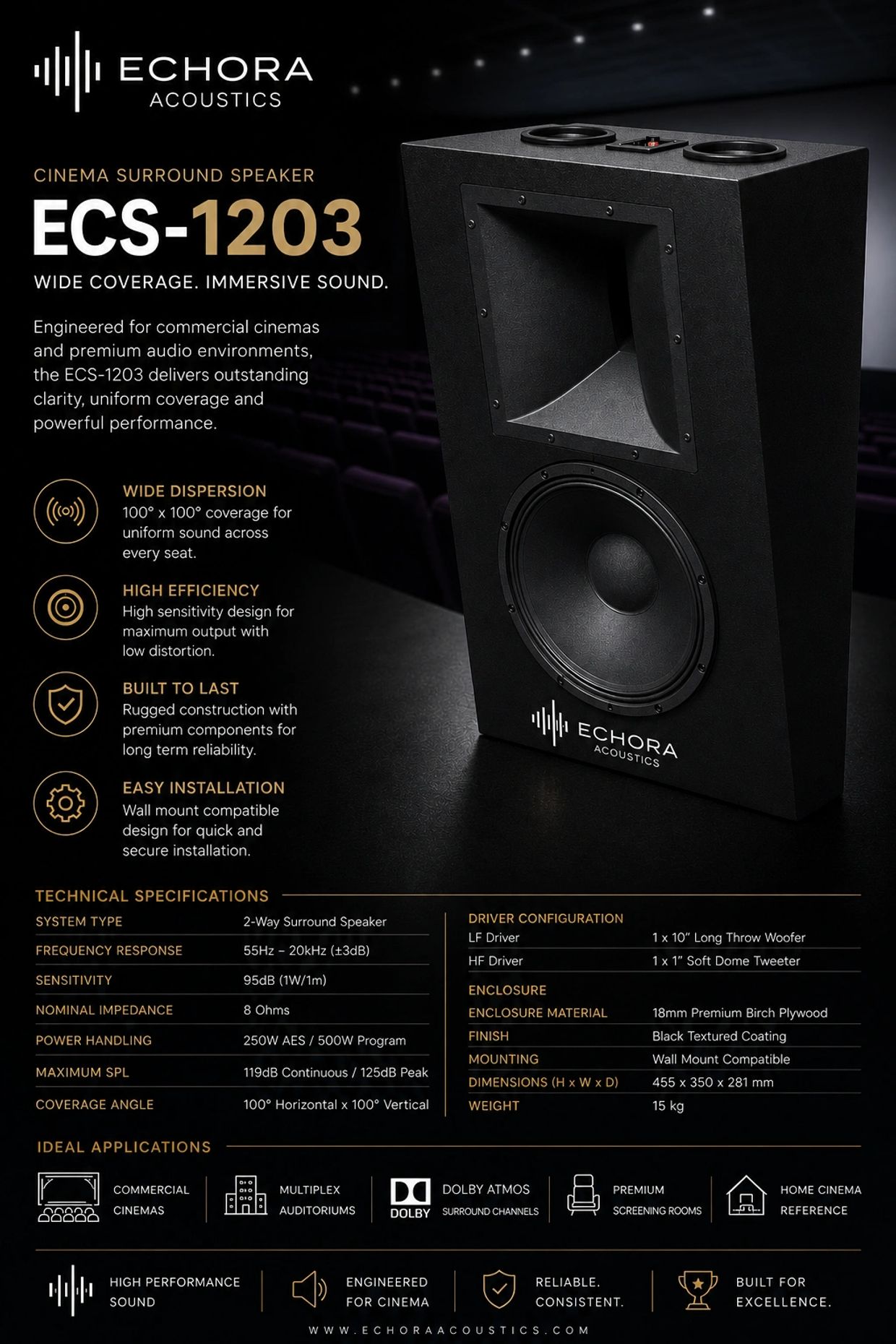

The ECS-1203 is a high-performance cinema surround loudspeaker designed for commercial cinemas, multiplex auditoriums, premium screening rooms, and immersive audio environments. Engineered for exceptional clarity, uniform coverage, and reliable operation, the ECS-1203 delivers a powerful and engaging surround sound experience throughout the auditorium.

Its advanced acoustic design combines a high-efficiency 10-inch long-throw woofer with a precision 1-inch soft dome high-frequency driver, ensuring accurate reproduction of movie soundtracks, effects, and dialogue with outstanding detail and dynamics.

• Wide 100° × 100° audience coverage
• High sensitivity, low distortion design
• Powerful 10-inch long-throw woofer
• Precision 1-inch soft dome tweeter
• Robust cinema-grade enclosure
• Easy wall-mount installation
• Ideal for Dolby Atmos and immersive audio systems
• Premium birch plywood construction

SpecificationValueSystem Type2-Way Cinema Surround SpeakerFrequency Response55Hz – 20kHz (±3dB)Sensitivity95dB (1W/1m)Nominal Impedance8 OhmsPower Handling250W AES / 500W ProgramMaximum SPL119dB Continuous / 125dB PeakCoverage Pattern100° Horizontal × 100° VerticalRecommended Amplifier Power100W – 500W @ 8ΩDistortion (THD)<1%Crossover Frequency2.2kHz

ComponentSpecificationLF Driver1 × 10" Long Throw WooferHF Driver1 × 1" Soft Dome TweeterWoofer Voice Coil2.5" (65mm)Tweeter Voice Coil1" (25mm)Woofer MagnetHigh Flux FerriteTweeter MagnetNeodymiumProtectionInternal PTC Protection

SpecificationValueEnclosure TypeBass ReflexMaterial18mm Premium Birch PlywoodFinishBlack Textured CoatingMountingWall Mount CompatibleConnectorGold-Plated Push TerminalColorBlack

SpecificationValueHeight455 mmWidth350 mmDepth281 mmWeight15 kg

• Commercial Cinemas
• Multiplex Auditoriums
• Dolby Atmos Surround Channels
• Premium Screening Rooms
• Home Cinema Reference Rooms
• Immersive Audio Installations

ECHORA ACOUSTICS commercial cinema loudspeakers are engineered to deliver powerful, reliable, and immersive sound reproduction for professional cinema environments. Built using premium components and precision acoustic engineering, the ECS-1203 ensures consistent performance, exceptional clarity, and long-term reliability.

Designed & Developed by Echora Acoustics
Crafted in India
7 Years Replacement Warranty
