ECHORA ACOUSTICS – Model EA-CC5 “DIALOGUE”

🔊 ECHORA ACOUSTICS – Model EA-CC5 “DIALOGUE”

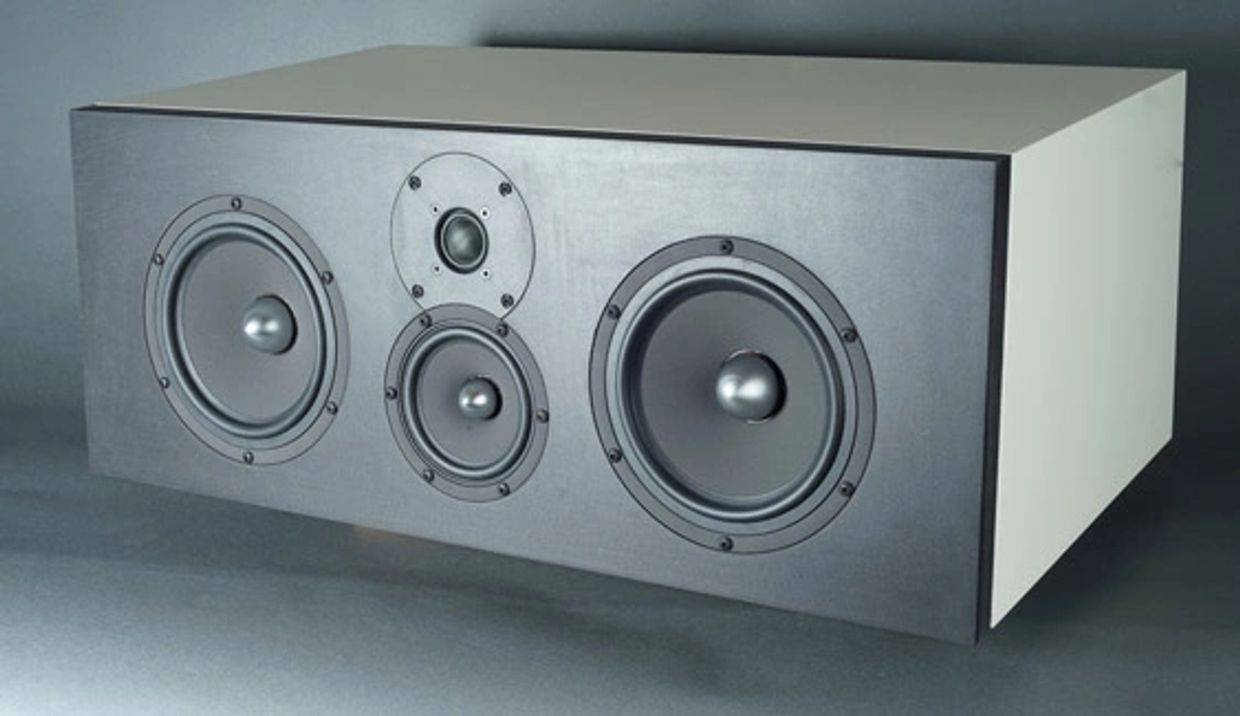

✨ Product Description The EA-CC5 “Dialogue” is engineered to deliver exceptional audio performance with crystal-clear vocals and precise sound imaging, making it the heart of any high-performance home theater speakers system. Designed with a balanced 3-way configuration, this center channel ensures every word, whisper, and cinematic detail is reproduced with stunning clarity. Its horizontally optimized driver layout provides wide dispersion, ensuring consistent sound across the entire listening area. The rigid, acoustically damped enclosure minimizes distortion, while dual woofers deliver tight, controlled bass for impactful movie experiences. Whether it’s dialogue, music, or effects, the EA-CC5 ensures every detail is heard exactly as intended.

⚙️ Key Features

🔸 3-Way center channel for superior vocal clarity

🔸 Dual woofers for deep and controlled bass

🔸 Wide dispersion design for even room coverage

🔸 Anti-resonance cabinet for clean sound output

🔸 Perfect tonal match with Echora tower speakers

📊 Technical Specifications Model No.: EA-CC5 “DIALOGUE” Type: 3-Way Center Channel Speaker Frequency Response: 45 Hz – 25 kHz Sensitivity: 90 dB (1W/1m) Nominal Impedance: 8 Ohms Power Handling: RMS: 150 Watts Peak: 300 Watts Drivers: HF Driver: 1” Soft Dome Tweeter Midrange Driver: 4” Dedicated Mid Driver LF Drivers: Dual 6.5” Woofers Crossover: Type: 3-Way Passive Crossover Frequencies: 400 Hz / 2.5 kHz Components: Audiophile-grade capacitors & precision inductors Cabinet Design: Horizontal anti-resonance enclosure Sealed / bass reflex optimized design High-density MDF with internal bracing Acoustic damping for reduced coloration Dimensions (W x H x D): 600 mm x 200 mm x 300 mm Weight: 14 kg Finish Options: Matte Black Satin White Walnut Custom Wood Veneer Placement: TV unit / shelf placement optimized Rubber isolation feet included Connectivity: Gold-plated binding posts

🎯 Sound Performance Ultra-clear dialogue reproduction Balanced tonal output for movies & music Strong midrange presence Controlled and punchy bass

🏆 Ideal For 5.1 / 7.1 / 9.2 home theater systems Movie lovers & OTT streaming setups Dedicated home cinema rooms Perfect match with Echora ES / RS / FS series If you want, I can next: ✔ Design complete 5.1 / 7.1 speaker package (matching sub + surrounds) ✔ Create home theater bundle pricing strategy ✔ Make catalog page with full system layout diagram

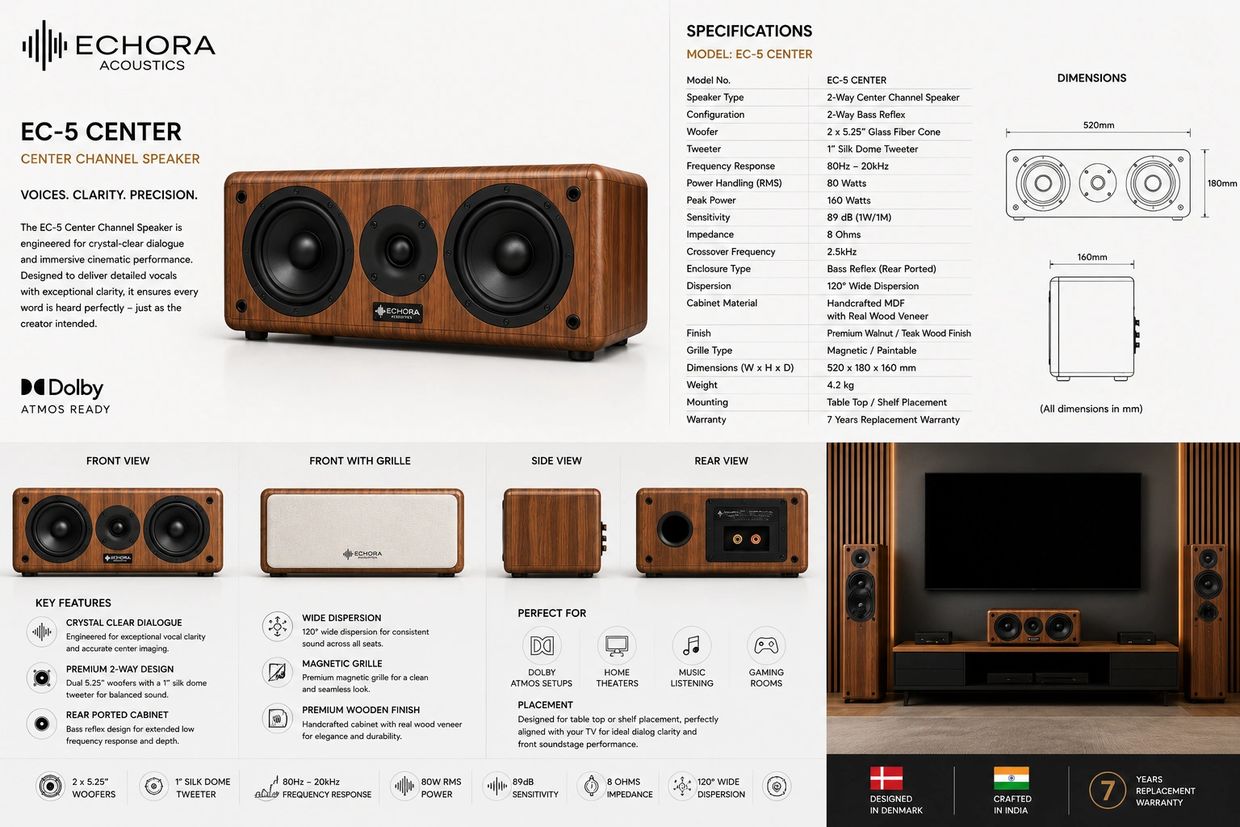

ECHORA ACOUSTICS presents the EC-5 Signature Center, a luxury center channel speaker designed to enhance audio performance in your home theater. Engineered for crystal-clear dialogue and cinematic realism, this speaker delivers premium home theater performance.

Technical Specifications

Specification Details

Model No. EC-5 Signature Center

Speaker Type 2-Way Center Channel Speaker

Configuration Dual Woofer Bass Reflex

Woofer 2 × 5.25” Glass Fiber Drivers

Tweeter 1” Silk Dome Tweeter

Frequency Response 80Hz – 20kHz

Power Handling (RMS) 80 Watts

Peak Power 160 Watts

Sensitivity 89 dB (1W/1M)

Impedance 8 Ohms

Crossover Frequency 2.5kHz

Dispersion 120° Wide Dispersion

Enclosure Type Rear Ported Bass Reflex

Cabinet Material Premium MDF with Luxury Laminate Finish

Finish Stone Grey Leather Matte Finish with Gold Accents

Grille Type Magnetic Fabric Grille

Dimensions (W × H × D) 520 × 180 × 160 mm

Weight 4.2 kg

Placement TV Unit / Shelf / Wall Placement

Recommended Setup Dolby Atmos / 5.1 / 7.1

Warranty 7 Years Replacement Warranty

Premium Features

- Crystal Clear Dialogue Performance

- Luxury Matte Stone Finish

- Wide Cinematic Soundstage

- Premium Silk Dome Tweeter

- Magnetic Seamless Grille

- Rear Ported Deep Vocal Response

- Designed for Dolby Atmos Systems

- Premium Handcrafted Cabinet Design

- Designed in Denmark

- Crafted in India

“Voices. Clarity. Precision.”
